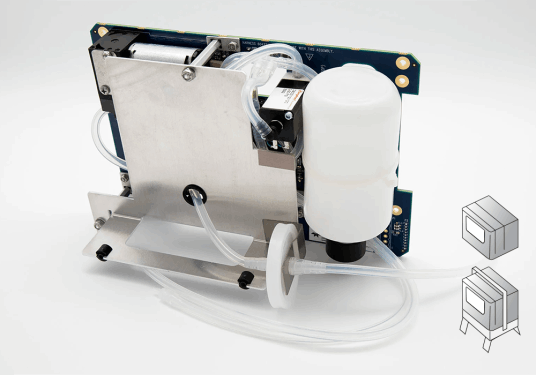

The TIENet 330 bubbler module technology is ideal in flow streams affected by harsh weather, debris or corrosive chemicals. Since the depth of flow is determined by measuring the pressure needed to force bubbles out of the line, the rate of flow is easily determined using one of the meter’s built-in flow conversions or a user defined level-to-flow relationship. Certified to MCERTS when paired with a Signature flow meter.
Learn more about Bubbler Flow Meters here.
Specifications
| TIENet® 330 Bubbler Module | |
|---|---|
| Level Measurement Range: | 0.003 to 3.05m (0.01 to 10 ft) |
| Level Measurement Accuracy: | +0.002m @ 22 °C (0.007 ft @ 72 °F) |
| Operating and Storage Temperature: | -18 ° to 60 °C (0 ° to 140 °F) |
| Temperature Compensation Range: | 0 ° to 60 °C (32 ° to 140 °F) |
| Temperature Coefficient (within compensated range): | ±0.0003 x Level (m) x Temperature Deviation from 22 °C
±0.00017 x Level (ft) x Temperature Deviation from 72 °F |
