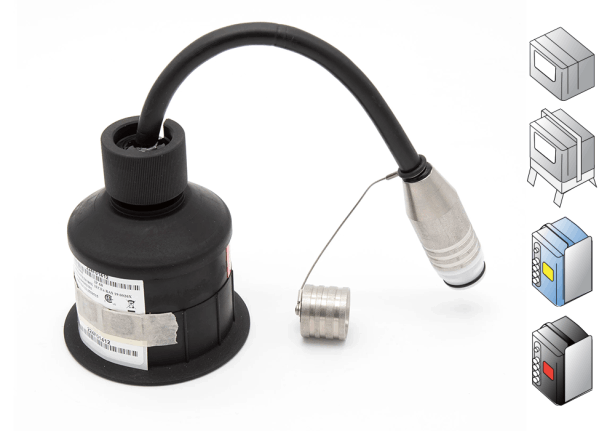

The TIENet 310 Ex sensor is mounted above the flow stream, transmitting sound pulses that are reflected off the liquid’s surface. The elapsed time between transmitted and returned signals determines liquid level. Flow rate is then calculated using one of the meter’s builtin flow conversions, or a user-defined level-to-flow relationship.
Specifications
| TIENet® 310 Ex Ultrasonic Level Sensor | |
|---|---|
| Measurement Range: | 0.3 to 3.3 m (1 to 11 ft) |
| Accuracy at 72 °F (22 °C): | ±0.006 m (0.02 ft) at ≤1 ft level change
±0.009 m (0.03 ft) > 1 ft level change |
| Temperature Range: | Operating: -20 to 60° C (-4 to 140° F)
Storage: -40 to 60° C (-40 to 140° F) |
| Temperature Coefficient (within compensated range): | ±0.0002 x Distance (m) x Temperature Deviation from 22 °C.
±0.00011 x Distance (ft) x Temperature Deviation from 72 °F. |
| Beam Angle: | 10 ° (5 ° from center line) |
| Frequency: | 50 kHz |
| Size: | 9.1 cm x 10.2 cm tall (3.63 in. x 4 in.) |
| Cable Length: | 10 or 23m (32.8 or 75.5 ft) |
| Weight: | 1.8 kg (4 lbs) |
| Body Material: | PVDF |
| Temperature Range: | -30 ° to 60 °C (-22 ° to 140 °F) (Operating & storage) |
| Certifications: | Group 2, Category 1G (zone 0), T4 Class I, Div 1, Groups C & D, T4 |
